Complete 130 watt Solar panel kit includes every thing you would need to fit and start using the solar energy from the sun , this panel is suitable for many applications including motorhomes caravans narrow boats and other fixed installations using 12 volt

Module characteristics

• 36 polycrystalline silicon solar cells (156mm x 78cm) which are connected in series and capable of charging 12V batteries
• 2 bypass diode iare installed to avoid ‘hot spot’ effect
• Heavy duty anodised aluminium frame provides high wind resistance and convenient mounting access
• Cells are laminated between high transmissivity, low iron, 3mm tempered glass and a sheet of TPT material and finally two sheets of EVA to prevent moisture entering the module
• Installation holes for standard bracket systems are provided
• Waterproof versatile junction box provides flexibility of connections
• Modules are manufactured in accordance with IEC 61215, TUV and come with 25 years limited output warranty

Electrical characteristics

• Typical maximum power (Wp) 130
• Open circuit voltage (Voc) 22.0
• Optimum operating voltage (Vmp) 17.5
• Optimum operating current (Imp) 7.43
• Short circuit current (Isc) 8.44

Information below represents the output of typical modules in 12V configuration. *This data is based on measurements made in accordance with Standard Test Conditions (STC) 1000W/m2, AM 1.5, cell temperature 25ºC

• Normal temperature 46±2ºC
• Current temperature coefficient (Isc) +0.10%/ºC
• Voltage temperature coefficient (Voc) -0.38%/ºC
• Power temperature coefficient (Wp) +0.47%/ºC
• Edge grounding =1ohm
• Wind resistance 2400Pa
• Maximum system voltage 1000V

Mechanical characteristics

• Weight 16.0 Kg

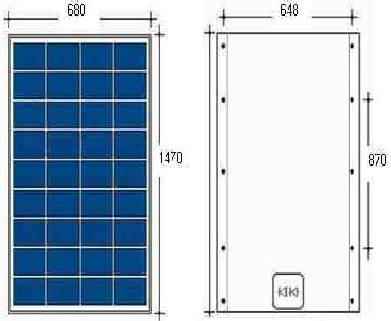

• Size of module (mm) 1470 x 680 x 50

Complete Kit Fitted £499.99
